 BATTERY 72V 40-50Ah
|
 230kg |
|
214kg
|
RANGE
Up to 75km |
NOTE: Delivery to a Business Address with a Forklift ONLY for these states (NT, WA, TAS)
LADY BUG, not only the most price competitive fully enclosed cabin mobility scooter on the market, it is also the best value for its advanced features and operation.
One that meets consumer demands of functionality, comfort, performance and safety, like no other in the industry.
Simple but superbly effective.
And quality assured with EEC certification / EU Homologation, and TGA / ARTG Registration (Pending).
Description:
LADY BUG, is not only the most price competitive fully enclosed cabin mobility scooter, but one that meets consumer demands of functionality, comfort, performance, stability and safety, like no other in the industry. Effective simplicity.
And quality assured with EEC / EU certification, and TGA registered.
LADY BUG has a longer wheelbase and its wheels wider apart than other cabin mobility scooters, making it much more stable, and reducing the rocking motion from rougher grounds. No claustrophobia in the Lady Bug ! The front independent MacPherson double strut suspension and integral rear suspension together with large 16″ wheels, further enhance the quality of the ride. Of its type, this is the safest, most comfortable, best performing, enclosed mobility scooter on the market. You will not be disappointed.
LADY BUG has been upgraded from the standard Cajero KL800DZY (K3) model as shown in the Owner’s Manual, to have a superior high back wide luxurious and very comfortable Captain’s Driver’s Seat with retractable three-point lap and diagonal seat belt, a reversing camera, USB port, four-wheel disk brakes, and a large Lithium Battery.
LADY BUG comes standard with the usual electrical features, controls and gauges expected on an electrical mobility device, including a two-speed switch to ensure a maximum speed of less than 10 kph for pedestrian footpath use, a USB port to charge your phone or other accessory, heater / demister that will help on those colder damp days, and plenty of glass to give the best visibility of any fully enclosed cabin mobility scooter in the industry.
Three standard colours, white, red and dark grey.
And with that cute look, LADY BUG just grows on you.
And to top it all off, LADY BUG has been upgraded to have a Motor and Lithium FePO4 Battery combination giving exceptional performance and cost efficiency in operation.
Nothing like it available in this class.
See the details of LADY BUG’s Motor and Battery Combination above.
The cost of electricity to run LADY BUG is about 1 cent/km. Maintenance is minimal. See the owner’s manuals for instructions on use and service requirements.
Weiyun Motor Co is a leading professional marketing manufacturer and exporter of electric tricycles, electric bikes, electric cars, and electric scooter products.
Their out-sourced production lines operate under ISO 9001 Quality Management, and their products meet EEC / EC Standards and Certification.
Their vehicles are well designed, well built, and their service is excellent.
Ronica Trade is super proud to sponsor and bring to the Australian mobility challenged, the Lady Bug.
Feature:
- Wider span and longer wheelbase – more stable, safer, and more comfortable
- Large wheels – better ride, better grip
- Wider inside – no elbows into the doors, no claustrophobia
- Super comfy wide leather adjustable Captains seat with retractable lap and diagonal seat belt
- Easy to read LCD display with good hand controls
- Very smooth throttle and steering
- Excellent visibility, best in enclosed mobility scooter market
- Comfortable and super easy to drive
- Economical with super performance
- Maximum footpath speed <10 km/hr
- Room in rear for groceries, small dog, etc
- Unique and good looking
Specifications:
- Manufacturer: Regal Raptor Motor Co Ltd
- Exporter: Weiyun Motor Co Ltd
- Importer: Ronica Trade Pty Ltd
- Model Number: K3
- Model: Lady bug
- Model Version: Lady Bug 2023
- Certification: EEC / ISO 9001
- Registration: TGA / ARTGA (Pending)
- Colours: Red, White, Silver Grey

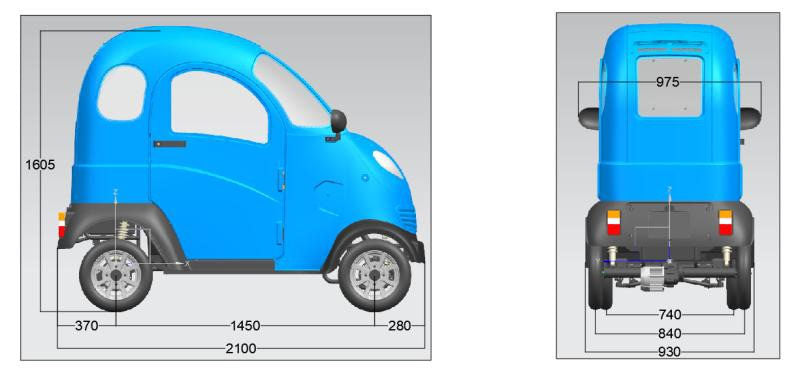

- Dimensions: 210 x 93 x 161 cm
- Weight:190 kg
- Weight Battery: 26 kg
- Weight total: 214 kg
- Weight Capacity:230 kg
- Wheelbase: 1450 mm
- Span rear wheels: 840 mm
- Maximum Speed: S:10 / L:20 km/hr
- Maximum Range *: Up to 75 km ( in ideal conditions )
- Maximum Slope *: 12°
- Motor:72 Volt 800 Watt brushless
- Battery:72V 40-50 Ah Lithium FePO4
- Charger: 84V 10A
- Brakes: Hydraulic Disk all Wheels
- Tyres:300-10 (Pressure: 250kPa / 30 psi)
- Wheels: 16″ / 41 cm
- Body: Two door, ABS panels
- Storage: Internal, large, behind seat for small dog or groceries
- Steering: Centre Handle-bar
- Suspension: Hydraulic Spring damping. Front; independent MacPherson strut. Rear; integral.
- Display: LCD, Battery, Speed, Odometer, Tripmeter, Reversing Camera, lights, indicators
- Auxiliary Power: USB outlet
Other: Captain Seat with Seat Belt, Aluminium alloy wheels, Reversing Camera, Full Suspension, Large Wheels, Disk Brakes, Heater, Demister, LCD display, USB port.
EEC Certificate covers all vehicle manufacturing requirements, based on European / Australian / NZ Standards. TGA / ARTG Registered.
* Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications.
Iterations:
K3 (Standard)
Lady Bug 2023 Large comfortable Captain seat, 50Ah Lithium battery, reversing camera.
Motor and Battery Combination:
LADY BUG has been upgraded to have a Large Lithium Battery giving exceptional performance and cost efficiency in operation.
LADY BUG has a 72V DC 800 Watt economical Brushless Motor; the higher voltage giving increased torque with no maintenance required, unlike all other cabin scooters with low 24V motors and with brushes that require replacement.
LADY BUG has a 72V 40 or 50 Ah Lithium FePO4 battery with an expected 75 km maximum travel distance. A first in the industry !
Unlike all other cabin scooters with a heavy 24V lead acid battery that require much sooner replacement.
This Lithium battery is so much better than the standard Lead Acid Battery, in many ways, not limited to, but including performance and overall driving cost.
The Lithium battery is less than half the weight, has more than twice as long a lifespan, has 1.5 – 2x the power available, but most importantly can supply the full power at the full rate right to the end of its’ cycle. It is also resistant to the Australian high temperatures during the summer time.
In practice, depending on driving style, terrain, load, speed etc, you will get between 50 – 60 km distance. You may get more, but remember Lithium batteries have a short end phase in their power supply, so run out quickly.
Shallow discharges will extend the life of the battery.
You may charge this Lithium battery as often as you like, after every use is recommended. Leaving the charger on overnight is ok. Remove charger if not using and switch off the main switch if storing.
If not using LADY BUG, you must fully charge the battery every month, and then disconnect the charger. Check the charger use and battery charging instructions by reading the FAQ’s in above link, the information there is important and an addendum to the manual.
Please note, this information is as per this particular type of Lithium battery and is not what you may know or be told about other types of Lithium batteries.
The cost of running LADY BUG is estimated to be less than 10 cents/km for electricity, battery and maintenance. Maintenance is minimal, but do not neglect a yearly or 1000 km check over, whichever comes first, by your local mobility scooter dealer or auto mechanic.
Weiyun Motor Co is a leading professional marketing manufacturer and exporter of electric tricycles, electric bikes, electric cars, and electric scooter products.
Their Outsourced Production Lines operate under ISO 9001 Quality Management, and their products have meet EC Standards and have EEC Certification.
Their vehicles are well designed and built, and their service is excellent.
